4200mAh 3.7V Lithium Polymer Battery Pack For GPS Device

Product Categories
Shenzhen Melasta Battery Ltd
Contact Now

4200mAh 3.7V Lithium Polymer Battery Pack For GPS Device

Place of Origin : China

Brand Name : Melasta

Model Number : LP902464 1S3P

Certification : CE, ROHS, KC, UN

Price : Negotiable

Packaging Details : Melasta standard carton

Payment Terms : L/C, T/T, D/P, Paypal

Supply Ability : 20, 000PCS/Month

MOQ : 100pcs

e-mail : linda.hou@melasta.com

skype : linda.hubei

Contact Now

4200mAh 3.7V Lithium Polymer Battery Pack For GPS Device

Additional Information:

Trademark:MELASTA
Packing:Melasta Standard Carton
Standard:CE RoHS KC
Origin:China
HS Code:85078010
Production Capacity:20, 000PCS/Month

Basic Information:

Model NO.:LP902464 1S3P
Type:Li-Polymer Battery
Charger Type:Electric Charger
Nominal Voltage:3.7V
Size:Prismatic
Export Markets:Eastern Europe, Eastern Asia, Western Europe

Features:

1.long discharge platform
2.Low inner resistance
3.Long cycle life
4.low self-discharge
5.CE/RoHs/KC/UN38.3/MSDS certificate
6. Low price
7. Fast lead time

Applications:

GPS,portable DVD,PDA,Cellular phone,notebook,earphone,bluetooth devices,MP3,MP4,RC toys,Power-driven tools&toy,camcorder,digital camera,head set stereo,handy terminal,mini disc player,etc.

Product Description

li-polymer rechargeable battery 3.7v li-po battery 4200mAh for GPS

Warning:

1. Polymer Li-Ion battery may cause fire if misusing. We are not responsible for any damages or losses caused by misusing (included but not limited to: improperly charging/discharging, any changes of this battery pack, disassembling battery packs).
2. Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident
3. Please check battery polarity before connect to device
4. Please read more safety warning about MELASTA polymer Li-ion battery

No.ItemGeneral ParameterRemark
1Reted CapacityTypical4200mAhStandard discharge(0.2C C5A)
after Standard charge
Minimum4000mAh
2Nominal Voltage3.7VMean Operation Voltage
3Voltage at the
end of Discharge		3.0VDischarge Cut-off Voltage
4Charging Voltage4.2±0.03V
5Internal Impedance≤60mΩ
6Standard chargeConstand Current 0.5C5A ;
Constand Voltage 4.2V 0.01C5A cut-off		Charge time: Approx 4.0h
7Standard dischargeConstand current 0.2 C5A;
end voltage 3.0A
8Fast chargeConstant Current 1C5A ;
Constand Voltage 4.2V 0.01 C5A cut-off		Charge time:Approx 2.5h
9Fast dischargeConstant current 1C5A;
end voltage 3.0V
10Maximum Continuous
charge current		1C5A
11Maximum Continuous
Discharge current		3.0C5A
12OperationTemperature
Range		Charge: 0-45 degrees Celsius60±25%R.H. Bare Cell
Discharge: -20-60 degrees Celsius
13Storage Temperature
range		Less than 1year: -20-25 degrees Celsius60±25%R.H. Bare Cell
Less than 3 months: -20-40
14Dimension9x24x64mmInitial Dimension
15Allow swelling Thickness≤10% of initial Thickness
16Weight90g

Product Tags:

rechargeable lithium polymer battery



battery power pack



rc car battery packs


Wholesale 4200mAh 3.7V Lithium Polymer Battery Pack For GPS Device from china suppliers

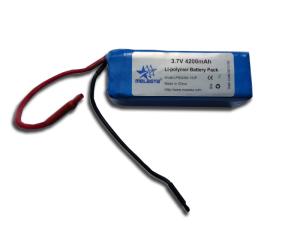

4200mAh 3.7V Lithium Polymer Battery Pack For GPS Device Images
